DURABLE Anju 80 Thermal Break Tilt & Turn Window
- Confirm required certification
Design & construction

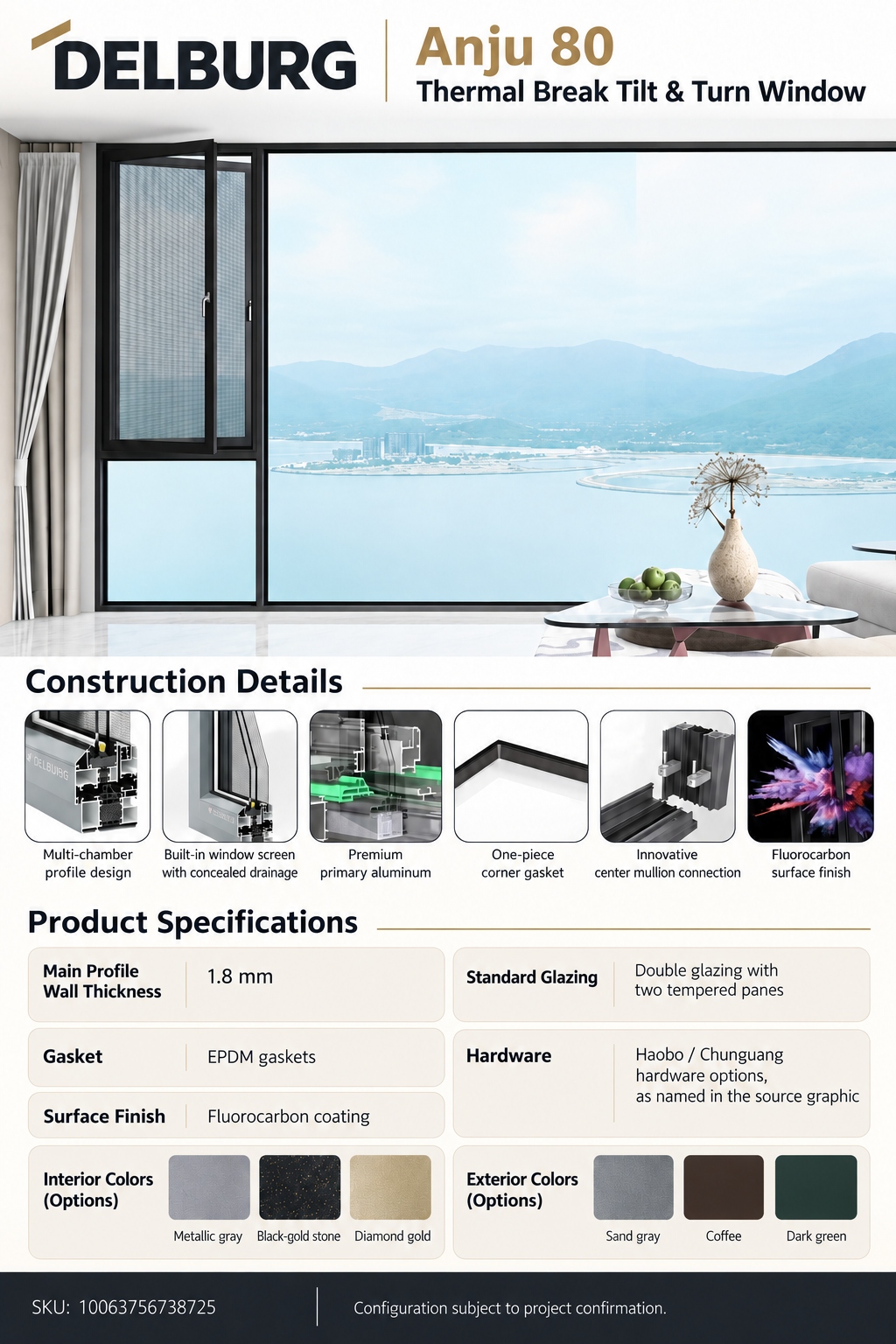

Anju 80 is the store’s thermal-break aluminum inward-opening and tilt-and-turn system. The individual-product detail graphic specifies 1.8 mm profile walls, double tempered glazing and fluorocarbon-coated surfaces.
Configuration notes & source
Construction and configuration
- Main Profile Wall Thickness: 1.8 mm
- Standard Glazing: Double glazing with two tempered panes
- Gasket: EPDM gaskets
- Hardware: Haobo / Chunguang hardware options, as named in the source graphic
- Surface Finish: Fluorocarbon coating
- Interior Colors: Metallic gray / black-gold stone / diamond gold
- Exterior Colors: Sand gray / coffee / dark green
Construction information and domestic performance grades are taken from this product’s official JD page. Confirm the final configuration and applicable test reports with the project quotation.
Source reference: Delburg manufacturer listing · SKU 10063756738725. Product identifier, store and specifications checked on 29 October 2026. English text and images are localized summaries of this listing.
Full Specifications
| Frame Material | Thermal-break aluminum |
|---|---|
| Series | Anju 80 |
| Opening | inward opening / tilt inward |
| Glass Type | Tempered glass |
| Screen | Included |
| Air Tightness (JD listing) | Grade 7 |
| Water Tightness (JD listing) | Grade 5 |
| Wind Resistance (JD listing) | Grade 7 |
| Sound Insulation (JD listing) | Grade 3 |
| Thermal Insulation (JD listing) | Grade 7 (2.0>K≥1.6) |
| Performance Data Source | Official JD listing and product-information graphics; domestic grades are not EN/ASTM test classifications |
| Main Profile Wall Thickness (JD listing) | 1.8mm |
| Functions (JD listing) | thermal insulation / heat retention / sound insulation / water resistance / wind resistance / dust / haze protection |
| Screen Style | Security-mesh screen |
| System Window | Yes |
| Hardware Inclusion | Included |
| Main Profile Wall Thickness (detail graphic) | 1.8 mm |
| Standard Glazing (detail graphic) | Double glazing with two tempered panes |
| Gasket (detail graphic) | EPDM gaskets |
| Hardware (detail graphic) | Haobo / Chunguang hardware options, as named in the source graphic |
| Surface Finish (detail graphic) | Fluorocarbon coating |
| Interior Colors (detail graphic) | Metallic gray / black-gold stone / diamond gold |
| Exterior Colors (detail graphic) | Sand gray / coffee / dark green |
Model-Specific Construction & Performance
Thermal Performance
JD thermal-insulation classification: Grade 7 (2.0>K≥1.6). These are domestic listing grades; a configuration-specific test report is required for project specification.
Acoustic Performance
JD sound-insulation classification: Grade 3. The listing does not supply a verified Rw/STC value for the final project configuration.
Air, Water & Wind
JD listing: air tightness Grade 7; water tightness Grade 5; wind resistance Grade 7. Domestic classifications, not EN/ASTM equivalences.
Profile & Glazing
Thermal-break aluminum. Main profile wall: 1.8 mm. Glazing: Double glazing with two tempered panes.
Hardware & Screens
Hardware: Haobo / Chunguang hardware options, as named in the source graphic. Screen: Included.
Finish & Configuration
Fluorocarbon coating Opening: inward opening / tilt inward. Confirm finish, dimensions and selected options with the quotation.
Size & Budget Reference
Use this for early planning only. Your final configuration, engineering review and project-specific quote are confirmed with our team.
Documents for Your Project Team
Share the right information with architects, installers and procurement teams before requesting a detailed quote.
Product Datasheet
Installation Guide
CAD Drawings
Get a Project-Specific Recommendation
Share dimensions, drawings or a reference photo. We will help match the system, glazing and hardware before preparing your itemized quote.
What we review
- System, glazing and hardware recommendations
- Sash dimensions and project-specific configuration
- Budget reference and the next drawing requirements
or write to [email protected] · replies within 24 hours
