DURABLE Jingjia 65 Resin Composite Tilt & Turn Window
- Confirm required certification
Design & construction

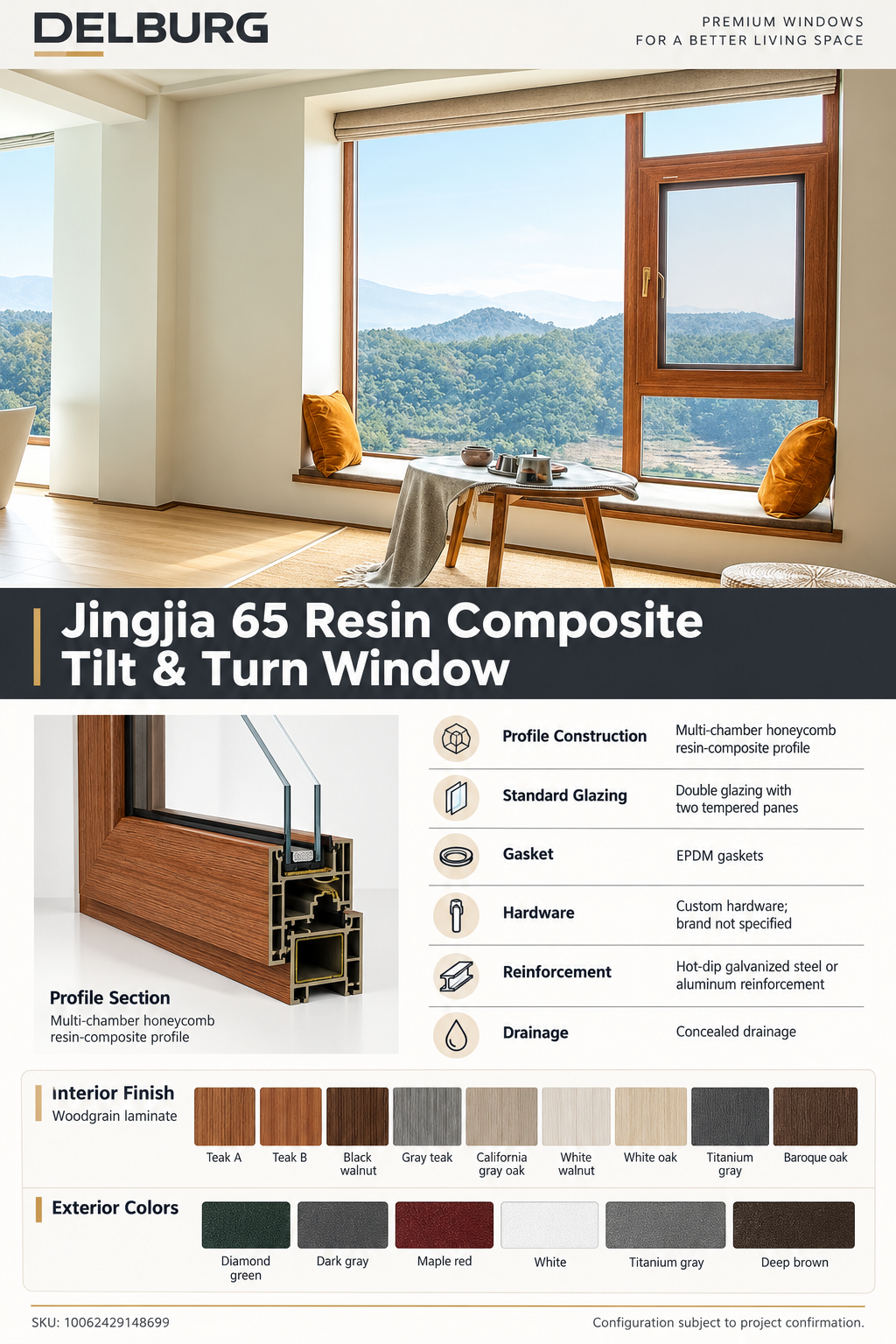

Jingjia 65 is a resin-composite inward-opening and tilt-and-turn window system. The detail graphic shows a multi-chamber honeycomb profile, multiple seals and double tempered glazing.
Configuration notes & source
Construction and configuration
- Profile Construction: Multi-chamber honeycomb resin-composite profile
- Standard Glazing: Double glazing with two tempered panes
- Gasket: EPDM gaskets
- Hardware: Custom hardware; brand not specified
- Reinforcement: Hot-dip galvanized steel or aluminum reinforcement
- Drainage: Concealed drainage
- Interior Finish: Woodgrain laminate
- Interior Colors: Teak A / teak B / black walnut / gray teak / California gray oak / white walnut / white oak / titanium gray / Baroque oak
- Exterior Colors: Diamond green / dark gray / maple red / white / titanium gray / deep brown
Construction information and domestic performance grades are taken from this product’s official JD page. Confirm the final configuration and applicable test reports with the project quotation.
Source reference: Delburg manufacturer listing · SKU 10062429148699. Product identifier, store and specifications checked on 29 October 2026. English text and images are localized summaries of this listing.
Full Specifications
| Frame Material | Resin composite |
|---|---|
| Series | Jingjia 65 |
| Screen | Not included in the listed configuration |
| Opening | inward opening / tilt inward |
| Air Tightness (JD listing) | Grade 8 |
| Water Tightness (JD listing) | Grade 5 |
| Wind Resistance (JD listing) | Grade 6 |
| Sound Insulation (JD listing) | Grade 4 |
| Thermal Insulation (JD listing) | Grade 8 (1.6>K≥1.3) |
| Performance Data Source | Official JD listing and product-information graphics; domestic grades are not EN/ASTM test classifications |
| System Window | Yes |
| Hardware Inclusion | Included |
| Functions (JD listing) | heat retention / sound insulation |
| Profile Construction (detail graphic) | Multi-chamber honeycomb resin-composite profile |
| Standard Glazing (detail graphic) | Double glazing with two tempered panes |
| Gasket (detail graphic) | EPDM gaskets |
| Hardware (detail graphic) | Custom hardware; brand not specified |
| Reinforcement (detail graphic) | Hot-dip galvanized steel or aluminum reinforcement |
| Drainage (detail graphic) | Concealed drainage |
| Interior Finish (detail graphic) | Woodgrain laminate |
| Interior Colors (detail graphic) | Teak A / teak B / black walnut / gray teak / California gray oak / white walnut / white oak / titanium gray / Baroque oak |
| Exterior Colors (detail graphic) | Diamond green / dark gray / maple red / white / titanium gray / deep brown |
Model-Specific Construction & Performance
Thermal Performance
JD thermal-insulation classification: Grade 8 (1.6>K≥1.3). These are domestic listing grades; a configuration-specific test report is required for project specification.
Acoustic Performance
JD sound-insulation classification: Grade 4. The listing does not supply a verified Rw/STC value for the final project configuration.
Air, Water & Wind
JD listing: air tightness Grade 8; water tightness Grade 5; wind resistance Grade 6. Domestic classifications, not EN/ASTM equivalences.
Profile & Glazing
Multi-chamber honeycomb resin-composite profile. Glazing: Double glazing with two tempered panes.
Hardware & Screens
Hardware: Custom hardware; brand not specified. Screen: Not included in the listed configuration.
Finish & Configuration
Woodgrain laminate Opening: inward opening / tilt inward. Confirm finish, dimensions and selected options with the quotation.
